1_ ISUZU-VC61- 6×4-Pump Truck Chassis
Product Detail
| Vehicle Model: |
5350THBW1 SDZY |
|
Chassis Parameters |
Chassis Dimension(L x W
x H) |
1 01 30×2540×3055mm |
| Curb Weight: |
9400Kg |
| GVW: |
35000Kg |
| Wheelbase: |
4800+1 370mm |
| Drive Type: |
6x4 |
|
Engine |
Engine Model: |
6WG1 -TCG52 |
| Engine Power: |
309Kw |
| Displacement: |
1 5681 ml |
| Horsepower: |
420Ps |
|
Transmission |
Transmission: |
ZF8S2030T0 |
| Forward Gear: |
8 Speed Gear |
| Backward Gear: |
2 Speed Gear |
| Seats |
Front Seat: |
2 |
|
Chassis |
Front Wheel Distance: |
21 42mm |
| Rear Wheel Distance: |
1 855/1 855mm |
| Front/Rear Suspension |
1 370/2590mm |
| Axle Loads: |
9000/1 3000/1 3000kg |
| Approach/Departure
Angle: |
1 7/1 8° |
| Leaf Spring: |
8/1 0pcs |
| Rear Axle Ratio: |
5.571 |
| Tires: |
1 1 (Including spare tire) |
| Tire Model: |
31 5/80R22 5 20PR |
| Fuel Tank Capacity: |
400L |
|
Standard Configuration |
1 |
Power steering system |
| 2 |
Air Conditioning |
| 3 |
Tubeless Tire |
| 4 |
ABS |
| 5 |
Free Maintenance Battery |
| 6 |
Central Lock |
| 7 |
Power Window |
| 8 |
Driving Data Recorder |
|
1 |
Front Chrome Kit |
| 2 |
Aluminum alloy rim |
| 3 |
Aluminum alloy gas tank |
| 4 |
Cab metal paint |
| 5 |
Remote key |
| Optional Configuration: |
6 |
Hydraulic retarder |
| 7 |
Air Suspension Cabin |
| 8 |
Air suspension Seat |
Notes: Above specs is for reference, any other specs needed, or special requirements, can be discussed accordingly.

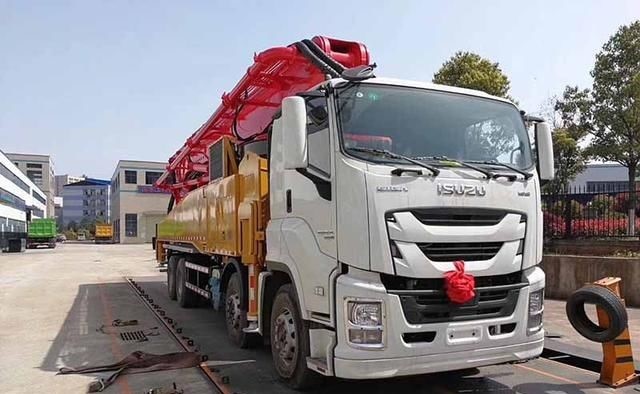

Photo For Reference:
