This product is a product of our company and the 2005 water well drilling through South Korean technology introduction, and has been continuously innovated and perfected by our company in the 7 years of practical production. This product has wireless remote control operation, four-corner hydraulic balance and automatic loading and unloading drilling rig, the drill pipe is fast and high-speed, the bottom frame shifting realizes the center dislocation and facilitates the lowering of the protective tube, and has the advantages of convenient maintenance at a later stage and low maintenance cost, which is deeply affected by actual production.
The majority of new and old customers praise.
Specification:
| Maximum opening depth |
200 meter |
| Drilling diameter |
100-219 mm |
| Working pressure |
1-3.45MP |
| Total air consumption |
16-55 cubic meters / minute |
| Drill pipe length |
1.5meter/unit |
| Drill pipe diameter |
76mm |
| Axial pressure |
2 Tons |
| Lifting force |
5 Tons |
| Swing torque |
1000--2600nm |
| Swing speed |
0-100 turn |
| Walking speed |
30km/h |
| Gradeability |
21° |
| Overall size |
4000*1900*2200mm |
| Main machine weight |
3.5Tons |
Quotation for all in one set
| Item |
Model |
Quantity |
Unit price CIF USD |
Total price CIF USD |
Main machine
Diesel power |
Z-WCTL180 |
1 |
18,500 |
18,500 |
| Drill pipe |
76*6*1500 |
180meter |
52/meter |
9,360 |
| Impactor |
HD45A |
1 |
1,250 |
1,250 |
| Drill head |
115mm |
1 |
860 |
860 |
| High pressure duct |
51*3P |
40meter |
30/meter |
1,200 |
Air compressor
Diesel power |
18/20 |
1 |
38,500 |
38,500 |

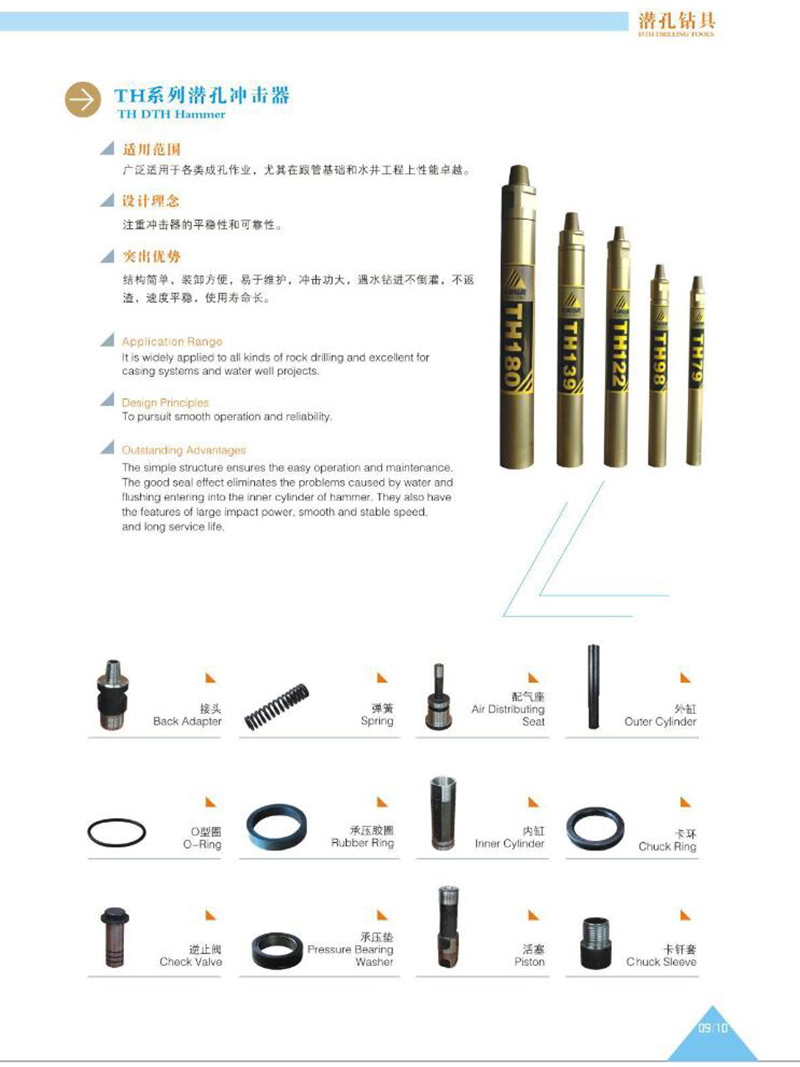

Drill Tools

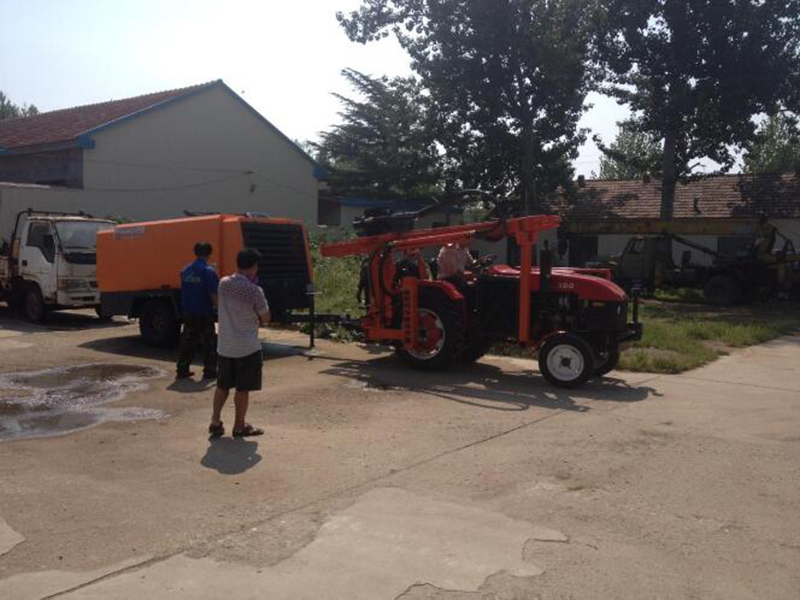

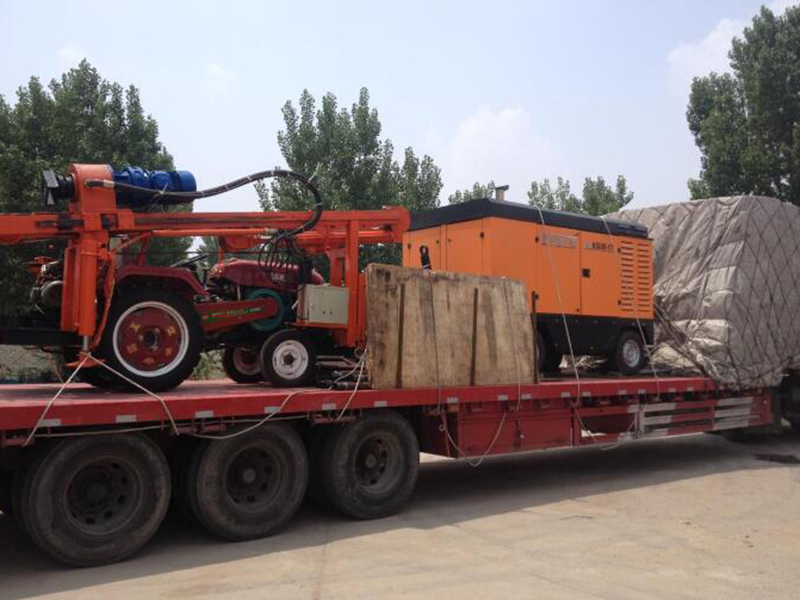

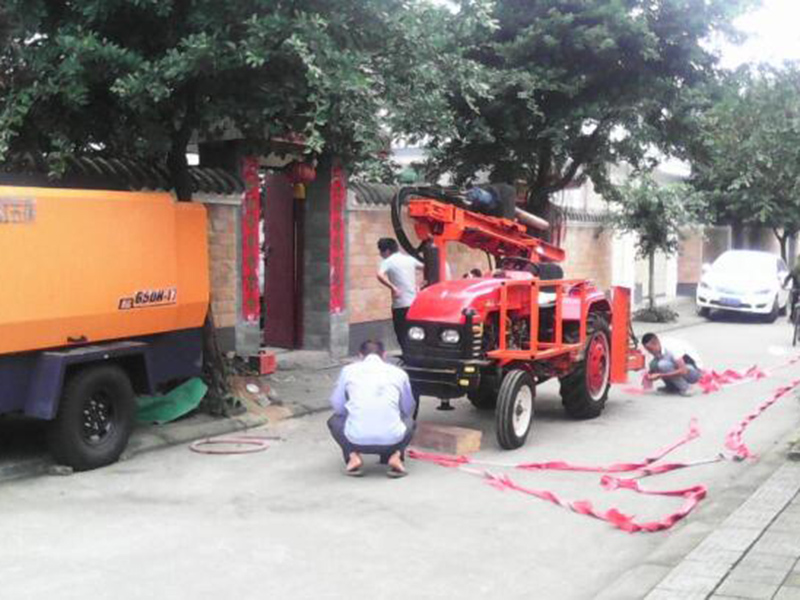

Transport and Construction Site
